Supply the AC-Loads from a dual source, the operation is automatic or manual, the ATS will ensure that only one source will feed the load at any time.

Dual Feed from Mains/Grid or Solar Inverter

Supply the AC-Loads from a dual source, the operation is automatic or manual, the ATS will ensure that only one source will feed the load at anytime. The device is very popular in photovoltaic systems with dual supply: Grid/Generator and Solar Inverters.

The dual-automatic transfer switch (ATS) is a newly developed miniature household transfer switch, that is mainly used to test whether the main or reserve is normal. The Dual Transfer Switch (hereinafter referred to as transfer switch) is suitable for an AC 50/60Hz dual supply system with a rated operating voltage of 220V/400V and rated operating current form 63A. Optional transfer of dual can be made according to requirement.

The product owns short circuit functions, such as fire protection, double-break and output ON signal function.

Both electric and operation and manual operation are available.

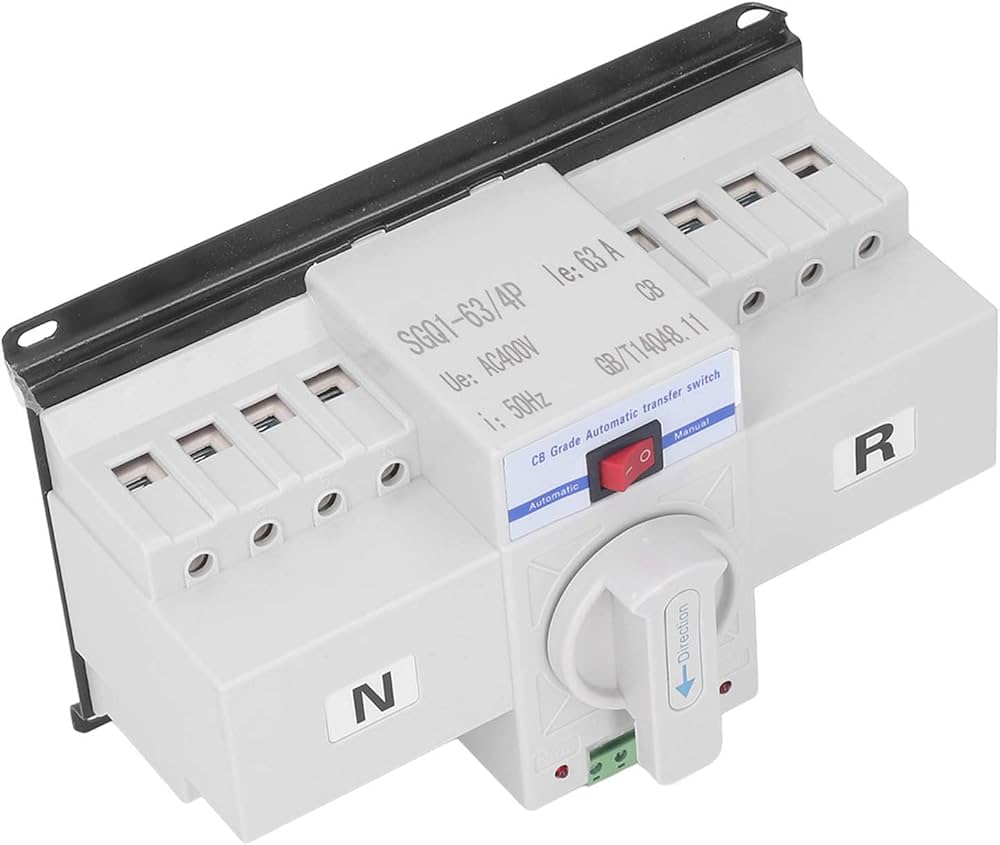

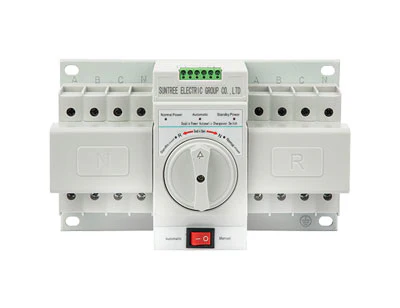

• Product name: Dual automatic transfer switch
• Operation mode: manual and automatic
• Working frequency: 50/60HzATS level: CB level
• Rated voltage: AC440V
• Working voltage: AC220V
• Conversion time: less than equal 2S level: AC-33iB
• Conversion: -inverting and -recovering
• Colour: white
• Material: PC plastic
• Size:150 x 138 x 115mm
• Package Contents:1 x Automatic Transfer Switch
