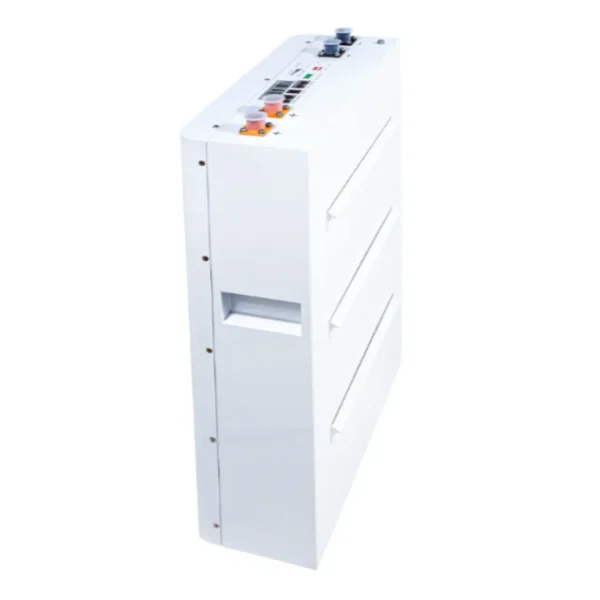

SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
SPECIFICATIONS
Energy: 5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage: 48V
Nominal Capacity : 106Ah
Energy Density: 5427 KWh
Dimensions(LxWxH) : 688 x 447 x 211mm
Weight (Approx.): 49.5KGS
Terminal Type: M6
Terminal Torque: 8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance: <30mO
Efficiency – round trip : 99%
Self Discharge per Month : <3%
Max parallel connectors : 16 pcs
Series connections : Not Allowed
Cycle life (0.2 C, 25 C@80% DOD) Discharge Temperature : 6000 Cycles
Charge Temperature : 20 C to 65C
Storage Temperature : 0 C to 50C
Bluetooth(App) : Optional
LCD Screen : Optional
Heating Function : Optional
Voltage Window : Optional
Recommend Charge Voltage : 43.2 – 58.4 V
Max Charge Voltage : 57.60 V
Recommend Charge current : 58.40
Max Discharging Voltage : 43.20
Max Continuous Discharge Current : 100 A
Peak Discharge Current: 150 A
Size: 688 x 447 x 211 mm. 49.5 Kg
What’s In the Box:
2 x SVOLT 48V 106Ah A-Grade Lithium Battery each with:
– 1 x Red (Positive) Battery Cable
– 1 x Black (Negative) Battery Cable
– 1 x Ethernet cable
– 1 x Manual
– 1x Wall Mount Bracket
– 1x Warranty Card

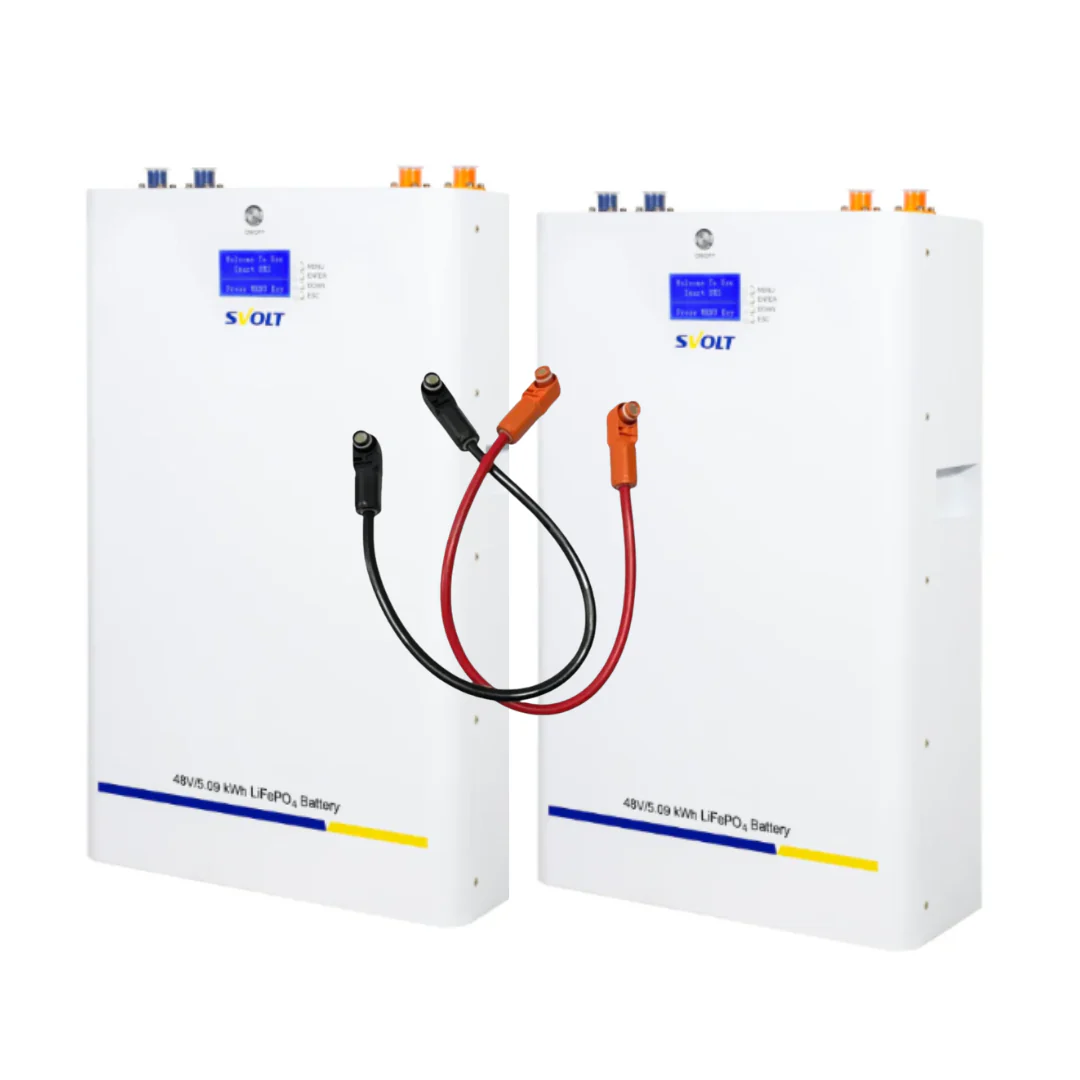

1 x Parallel Cable Set
Battery Warranty: 5 Years Repair
